Spesifikasi
Dimensi
| SPESIFIKASI TEKNIS |

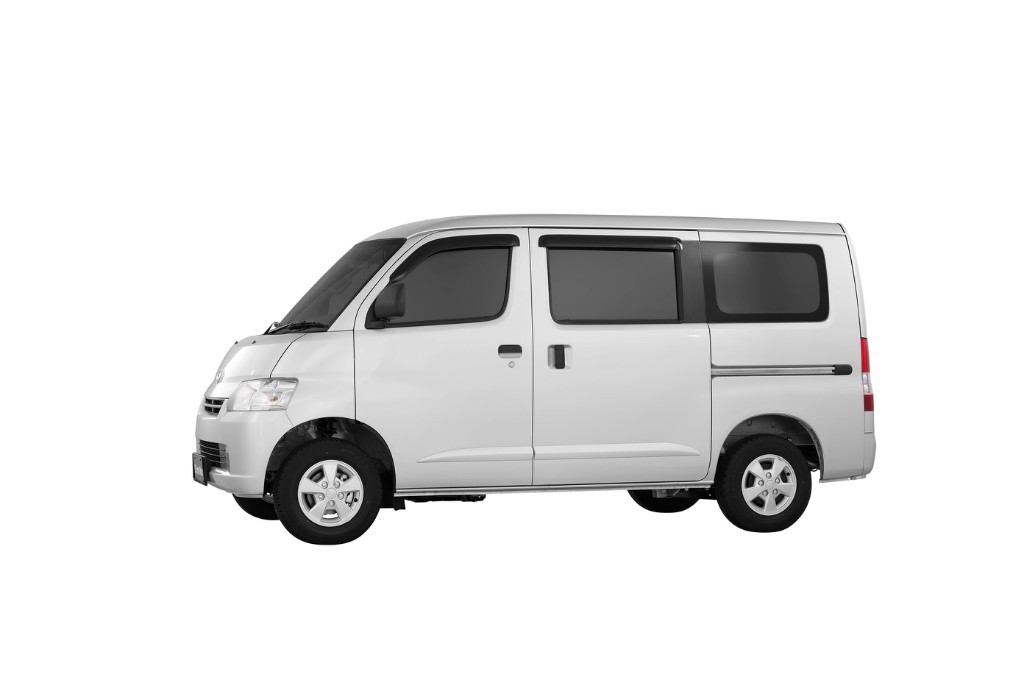

MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| DIMENSI | |||||
| Panjang x Lebar x Tinggi keseluruhan (mm) | 4045 x 1665 x 1900 | ||||
| Jarak sumbu roda (mm) | 2650 | ||||
| Jarak pijak roda depan/belakang (mm) | 1460/1440 | ||||
| Tinggi dari tanah (mm) | 165 | ||||
| BERAT | |||||
| Berat kosong kendaraan (kg) | 1840 | 2000 | |||
Kapasitas Penumpang
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Jumlah | 9 | 8 | 9 | 2 | |
Performa
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Radius putar minimum | 4.7 | ||||
Mesin
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | ||||
|---|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | |||
| D | D | |||||
| FACE FACE | FRONT FACING | FACE FACE | ||||
| Tipe | K3 - DE, DOHC | 3SZ - VE, DOCH VVTi | K3 - DE, DOHC | 3SZ - VE, DOCH VVTi | ||
| Kapasitas silinder (cc) | 1298 | 1495 | 1298 | 1495 | ||
| Jumlah silinder | 4 Silinder segaris | |||||
| Jumlah katup | 16 | |||||
| Diameter x langkah (mm) | 72,0 x 79,7 | 72,0 x 91,8 | 72,0 x 79,7 | 72,0 x 91,8 | ||
| Tenaga maksimum (PS/rpm) | 88/6000 | 97/6000 | 88/6000 | 97/6000 | ||
| Torsi maksimum (Kg.m/rpm) | 11,7/4400 | 13,7/4400 | 11,7/4400 | 13,7/4400 | ||
| Sistem bahan bakar | EFI (Electronic Fuel Injection) | |||||
| Kapasitas tangki bahan bakar (Liter) | 43 | |||||
Transmisi
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Tipe | Manual, 5 Kecepatan maju | ||||
| Rasio gigi | Gigi 1 : 4.059 | Gigi 1 : 3.769 | Gigi 1 : 4.059 | Gigi 1 : 3.769 | |
| Gigi 2 : 2.390 | Gigi 2 : 2.045 | Gigi 2 : 2.390 | Gigi 2 : 2.045 | ||
| Gigi 3 : 1.457 | Gigi 3 : 1.376 | Gigi 3 : 1.457 | Gigi 3 : 1.376 | ||
| Gigi 4 : 1.000 | Gigi 4 : 1.000 | Gigi 4 : 1.000 | Gigi 4 : 1.000 | ||
| Gigi 5 : 0.838 | Gigi 5 : 0.838 | Gigi 5 : 0.838 | Gigi 5 : 0.838 | ||
| Gigi Mundur : 4.128 | Gigi Mundur : 4.128 | Gigi Mundur : 4.128 | Gigi Mundur : 4.128 | ||
| Rasio gigi akhir | 5.125 | 4.875 | 5.125 | 4.875 | |
Sistem Kemudi
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Tipe | Rack & Pinion | Rack & Pinion dengan Power Steering | Rack & Pinion | Rack & Pinion dengan Power Steering | |
Rem
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Depan/Belakang/Rem Parking | Cakram (Disc) berpentilasi dengan booster/Drums, leading & trailing / Mekanik pada roda belakang | ||||
Suspensi
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Depan | Mac Pherson Struts dengan per keong | ||||
| Belakang | 5 link, rigid-axle dengan per keong | ||||
Ban
| SPESIFIKASI TEKNIS |
MINI BUS |
BLIND VAN | |||
|---|---|---|---|---|---|
| 1.3 | 1.5 | 1.3 | 1.5 | ||
| D | D | ||||
| FACE FACE | FRONT FACING | FACE FACE | |||
| Ukuran | 165 R13 - C | ||||
| Tipe | Velg Alloy | Velg Standard | |||
